Commercial kitchen ventilation
Commercial stainless steel kitchen exhaust hoods configured around your cooking line. Choose the hood profile, filter structure, metal grade and packing style to suit the installation and export requirements.
Choose a configuration
Four exhaust hood options for different cooking lines
Compare the hood profile, dimensions and packing approach. Final size and filter layout can be confirmed against the equipment plan.
Oil-filter hood
Removable oil-filter structure for restaurant and hotel cooking lines. Select filter arrangement and hood dimensions around the installed appliances.
Typical range: 1,000–2,000 mm long
European-style hood
A shallower profile for wall-mounted installations that call for a compact depth and clean front line.
Typical size: 1,000–3,000 × 700 × 450 mm

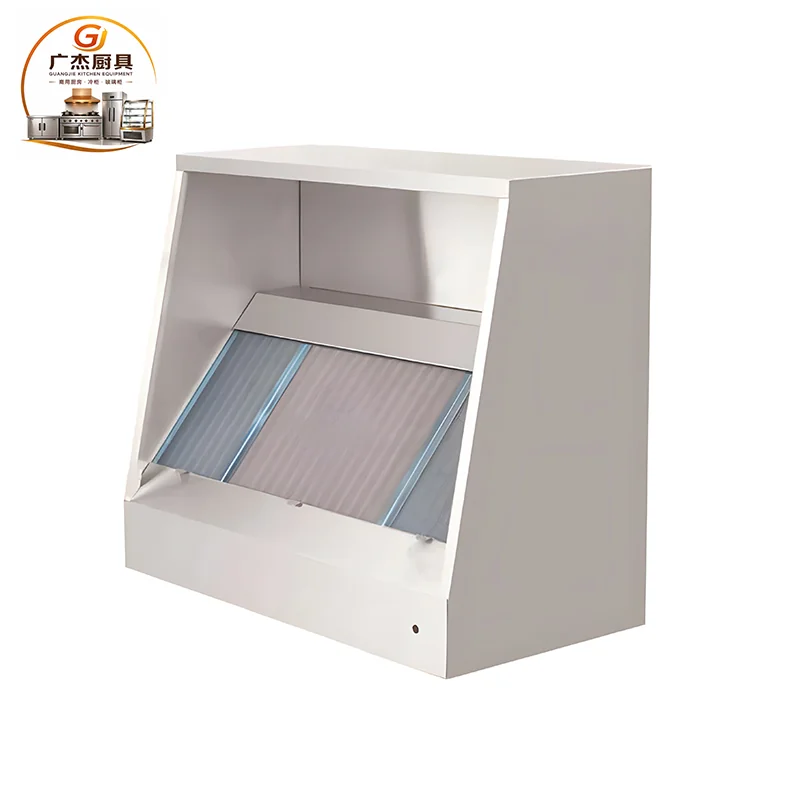

Knock-down flat-packed hood
Export-oriented construction that reduces packed volume for distributor orders and projects with container-shipping requirements.
Typical size: 1,000–2,000 × 530 × 915 mm

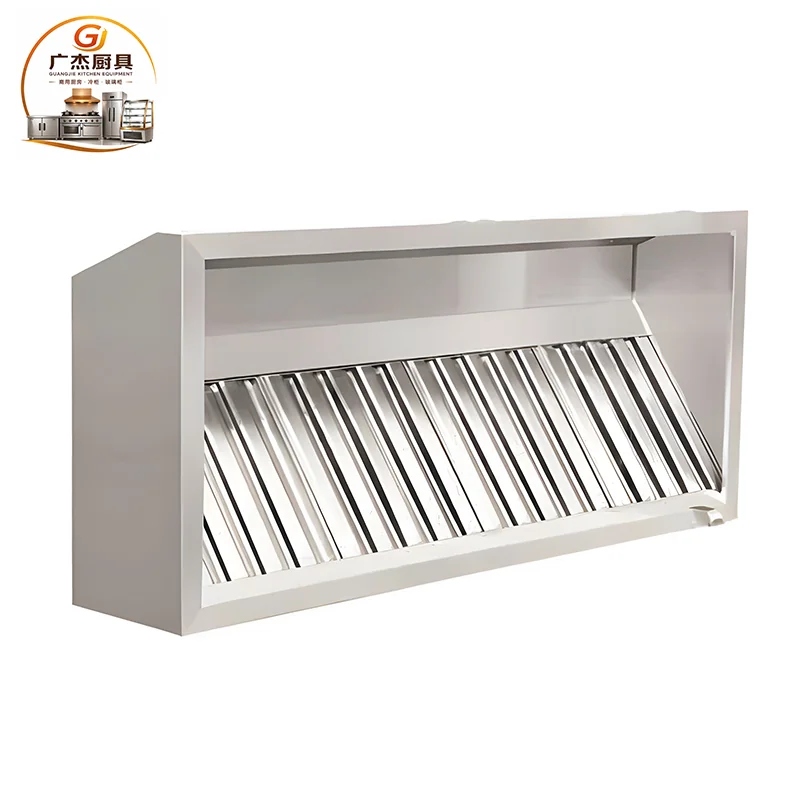

Large project hood
For long commercial cooking lines where the hood length and filter layout follow the project plan.
Typical range: 3,000–6,000 mm longReference specifications
Size and material ranges
Use these published ranges for initial planning. Confirm final dimensions, material grade, thickness and connection points for each order.
| Series | Typical length | Depth × height | Material | Thickness / packing |
|---|---|---|---|---|
| YZ / YWYZ oil-filter | 1,000–2,000 mm | 900 or 1,000 × 500 mm | SUS201 / SUS304 | 0.8–1.2 mm; welded |
| YZ European | 1,000–3,000 mm | 700 × 450 mm | SUS201 / SUS304 | 0.8–1.2 mm; confirm by project |
| BZYZ flat packed | 1,000–2,000 mm | 530 × 915 mm | SUS201 / SUS304 | 1.0–1.5 mm; flat packed |
| CFZ large project | 3,000–6,000 mm | 1,200 mm depth | SUS201 / SUS304 | Project dependent; flat packed |
Dimensions are representative options shown on the source product page. Verify the final drawing and connection details before production.
Export packing
Plan packed volume with the hood design
BZYZ and CFZ flat-packed configurations are intended to reduce transport volume. The source specifications list about 0.15–0.3 CBM for standard BZYZ export models. For the CFZ project hood, the listed packing height is reduced from about 1.2 m to about 0.2 m.
Confirm the packed dimensions for the selected hood, quantity and shipment plan before booking freight.
Filter and baffle choices
Available structures include stainless steel oil filters, mesh filters and baffle filters. Replacement baffle plates can also be specified for compatible hood structures.
- Match the filter type to the hood series and cooking line.
- Confirm filter dimensions and the number of sections.
- Share duct outlet position and installation height with the layout.
Prepare an enquiry
Details to confirm before quotation
A cooking-line plan helps confirm the hood type, dimensions and filter layout in fewer steps.
Cooking equipment
List the appliances below the hood and share the cooking-line layout.
Required dimensions
Provide length, depth, height, mounting height and duct connection position.
Material and filters
Specify SUS201 or SUS304, target thickness and filter structure.
Order and shipping
Share quantity, packing preference and destination port for the quotation.
Applications
For commercial cooking environments
Common questions
Exhaust hood selection FAQs
How do I choose the hood size?
Share the cooking equipment layout, hood length, depth, mounting height and duct outlet position. The final dimensions should be checked against the installation plan.
Which stainless steel grades are available?
The listed options are SUS201 and SUS304. Specify the grade and thickness required for the project when requesting a quotation.
Can the hood be supplied flat packed?
BZYZ and CFZ configurations are listed as flat-packed options. Confirm the packed dimensions and volume for the selected model and order quantity.
What filter types can I request?
The listed filter options include stainless steel oil filters, mesh filters and baffle filters. Confirm the compatible type and dimensions for the hood series.
Request a kitchen exhaust hood quotation
Send your hood type, cooking-line dimensions, material, filter requirements, quantity and destination. The team can confirm a suitable configuration and packing plan.
