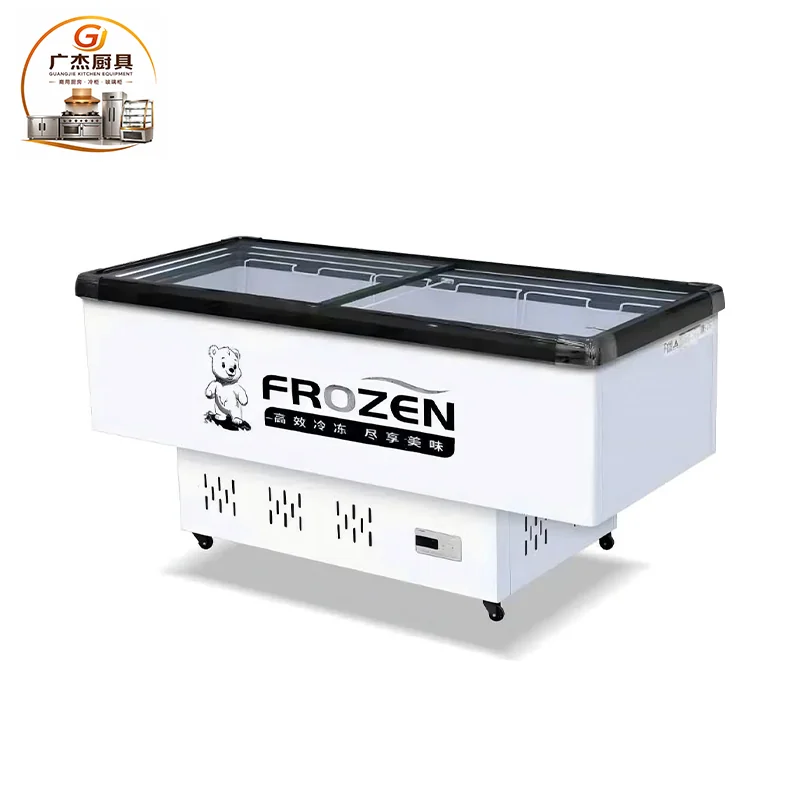

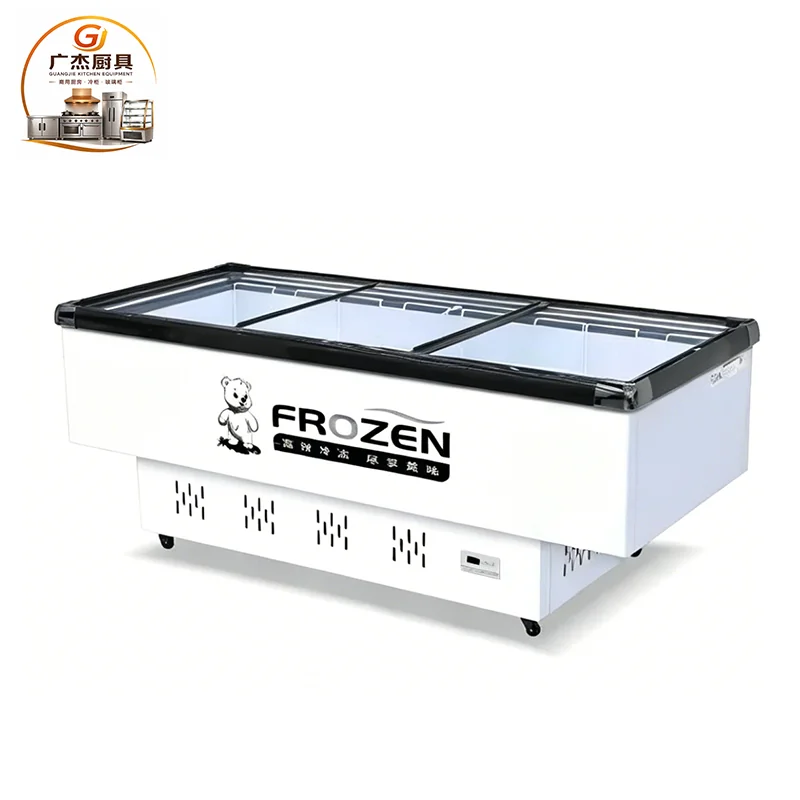

T Shape Commercial Flat Glass Island Freezer
The SD/SC series is designed for frozen-food display in supermarkets, convenience stores and other retail areas. Eight listed models cover cabinet widths from 1,220 to 2,500 mm and internal capacities from 216 to 820 L.
SD/SC model dimensions
Dimensions are listed as overall size and internal size. Use the listed figures for comparison; confirm voltage, frequency, plug, temperature and refrigerant for the selected configuration.
| Model | Overall size (mm) | Internal size (mm) | Capacity | Cooling capacity |
|---|---|---|---|---|
| SD/SC-1200 | 1,220 × 660 × 870 | 1,040 × 500 × 380 | 216 L | 200 W |
| SD/SC-1400 | 1,400 × 660 × 870 | 1,220 × 500 × 380 | 260 L | 220 W |
| SD/SC-1600 | 1,600 × 800 × 870 | 1,430 × 630 × 380 | 385 L | 240 W |
| SD/SC-1800 | 1,830 × 800 × 870 | 1,660 × 630 × 380 | 440 L | 300 W |
| SD/SC-2000 | 2,000 × 800 × 870 | 1,850 × 630 × 380 | 491 L | 400 W |
| SD/SC-2000A | 2,000 × 970 × 870 | 1,850 × 795 × 380 | 520 L | 420 W |
| SD/SC-2200 | 2,200 × 970 × 870 | 2,030 × 795 × 380 | 590 L | 500 W |
| SD/SC-2500 | 2,500 × 1,000 × 870 | 2,330 × 830 × 380 | 820 L | 650 W |
Choose by floor space and display volume
Compact
SD/SC-1200 and SD/SC-1400
Standard
SD/SC-1600, SD/SC-1800 and SD/SC-2000
Large
SD/SC-2000A, SD/SC-2200 and SD/SC-2500
Details for a quotation
- Selected model and quantity
- Available floor space and placement
- Destination voltage, frequency and plug
- Required temperature and products to display
- Delivery destination and timing
- Branding and packaging requirements
Common questions
Which models are suitable for compact retail areas?
SD/SC-1200 and SD/SC-1400 are the compact models in the listed range. Confirm aisle clearance and service space before selecting a size.
What is the difference between SD/SC-2000 and SD/SC-2000A?
Both are listed at 2,000 mm wide. The SD/SC-2000A is deeper at 970 mm and has 520 L capacity; the SD/SC-2000 is 800 mm deep with 491 L capacity.
What electrical and temperature details should I confirm?
Provide destination voltage, frequency and plug, along with the required operating temperature and refrigerant preference, for confirmation with the selected model.
What products are shown in this freezer?
The source lists frozen meat, seafood, ice cream, dumplings, hot-pot ingredients and packaged frozen food as example retail products.
