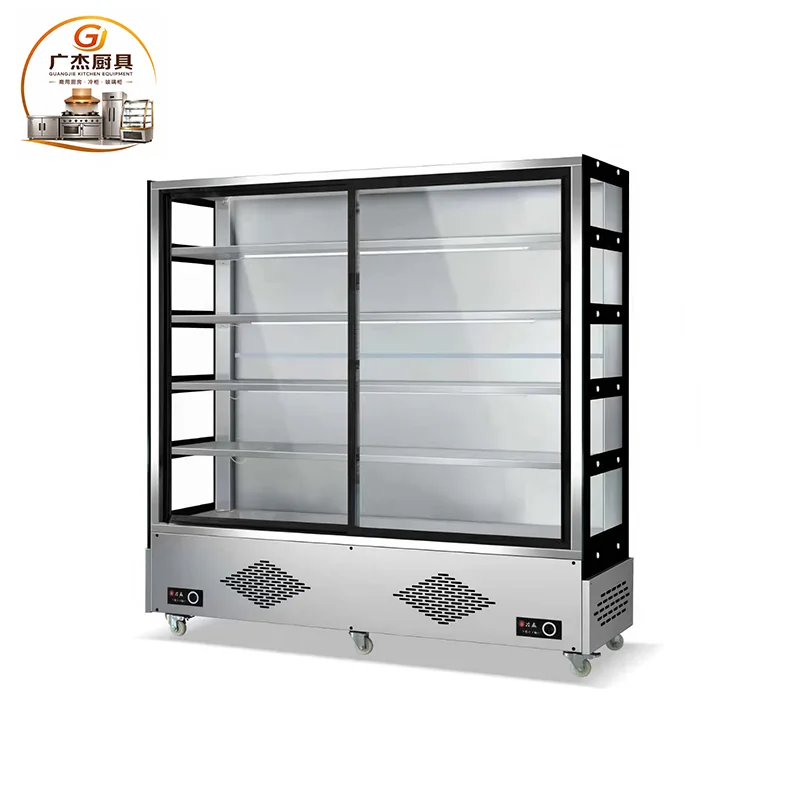

Commercial Refrigerated Skewer Cabinet
A chilled display cabinet for hot pot, barbecue, malatang and skewer shops. Existing product information lists shelf cooling and shelf-plus-back cooling, with cabinet lengths from 1.2 m to 3.0 m.
Key details from the product information
A glass display area and multi-layer shelves present skewers and prepared ingredients in an organized way.
The source lists shelf cooling and shelf-plus-back cooling options.
Catalog models run from 1.2 m to 3.0 m for different shop layouts.
Listed applications include hot pot restaurants, skewer shops, barbecue restaurants and malatang stores.
Compressor configuration and electrical requirements vary by length and cooling option; confirm the selected model.
Confirm these details for quotation
Confirm cabinet length and available installation space.
Choose shelf cooling or shelf-plus-back cooling.
Confirm compressor configuration and voltage.
Provide quantity, packing needs and destination.
Match Length and Cooling to the Counter
Catalog models range from 1.2 m to 3.0 m and list shelf cooling or shelf-plus-back cooling. Compare the cabinet length with the available counter space and choose the display format for your ingredient presentation. Compressor configuration and electrical requirements vary by cabinet length and cooling option, so confirm the exact model, voltage, quantity, packing and destination with the supplier.
Skewer Cabinet Models and Compressor Ratings
Published model specifications for the listed cabinet lengths and cooling configurations.
| Model | Product Size | Cooling Method | Shelf Cooling Compressor | Shelf + Back Cooling Compressor |
|---|---|---|---|---|
| 1.2 m | 1200 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 280 W | Single compressor / 380 W |
| 1.5 m | 1500 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 380 W | Single compressor / 400 W |
| 1.8 m | 1800 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 480 W | Dual compressor / 640 W |
| 2.0 m | 2000 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 480 W | Dual compressor / 640 W |
| 2.5 m | 2500 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 480 W | Dual compressor / 640 W |
| 3.0 m | 3000 × 550 × 1800 mm | Shelf / Shelf + Back | Single compressor / 480 W | Dual compressor / 640 W |
Confirm the selected model, cooling configuration, voltage and plug type with the supplier before ordering.
