Commercial Stainless Steel Sink Top with Drainboard
A stainless steel worktop with an integrated sink bowl for commercial washing and preparation areas. Select a single or double bowl, left or right drainer, moulded or welded bowl, and the middle or corner drain position to match the counter layout.
Specify the sink top for your counter
MS1B provides a single bowl; MS2B provides a double bowl for separate washing and rinsing.
Choose a left or right drainer to suit the operator position and available counter run.
Select moulded or welded bowl construction with a middle or corner drain outlet.
MS1B and MS2B sink top models
Overall sizes are shown as length × depth in millimetres. Bowl sizes include bowl depth. Drainer layouts are identified by L or R.
| Configuration | Models | Overall size / bowl size |
|---|---|---|
| MS1B single sink top | MS1B-7070 / MS1B-6060 | Overall: 700 × 700 / 600 × 600 mm Bowl: 500 × 500 × 300 / 400 × 400 × 250 mm |
| MS2B double sink top | MS2B-1260 / MS2B-1270 | Overall: 1200 × 600 / 1200 × 700 mm Bowl: 500 × 400 × 250 / 500 × 500 × 300 mm |
| MS1B single bowl with left drainer | MS1B-1070L / 1060L / 1270L / 1260L / 1470L / 1460L | 1000–1400 mm length 600 / 700 mm depth Left-side drainer |
| MS1B single bowl with right drainer | MS1B-1070R / 1060R / 1270R / 1260R / 1470R / 1460R | 1000–1400 mm length 600 / 700 mm depth Right-side drainer |
| MS2B double bowl with left drainer | MS2B-1470L / 1460L / 1670L / 1660L / 1870L / 1860L / 2070L / 2060L | 1400–2000 mm length 600 / 700 mm depth Left-side drainer |
| MS2B double bowl with right drainer | MS2B-1470R / 1460R / 1670R / 1660R / 1870R / 1860R / 2070R / 2060R | 1400–2000 mm length 600 / 700 mm depth Right-side drainer |
Bowl construction options: MSKM and MSKC moulded bowls; WSKM and WSKC welded bowls. Outlet options: middle or corner. Confirm material grade, thickness, bowl depth, drain outlet position, final size and quantity before quotation.
Common models: MSKM-4040 and MSKM-5050.
Common models: MSKC-4040, MSKC-5050, MSKC-5040, MSKC-4050 and MSKC-6050.
Common models: WSKM-4040, WSKM-5040, WSKM-5050 and WSKM-6050.
Common models: WSKC-4040, WSKC-5040, WSKC-5050 and WSKC-6050.

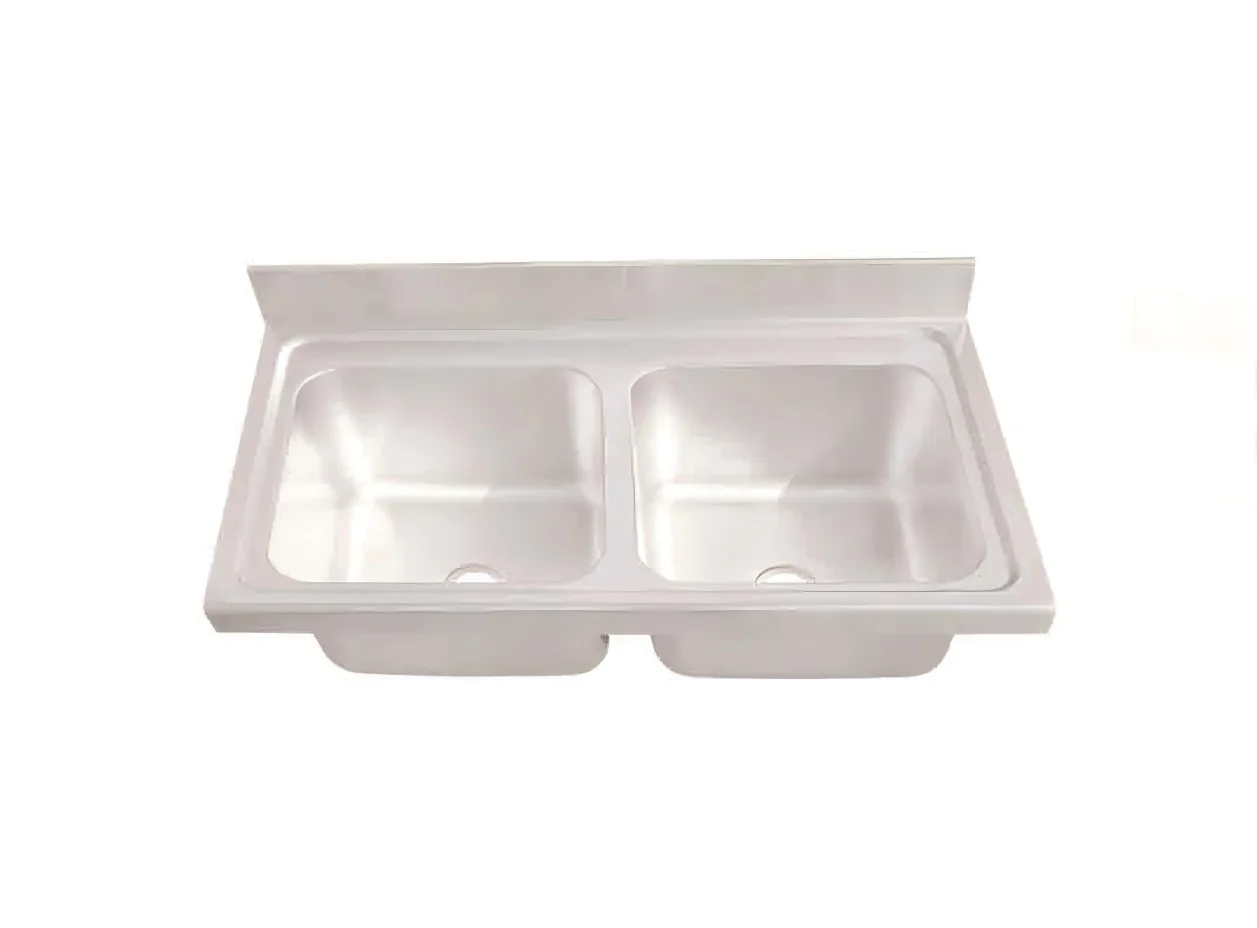

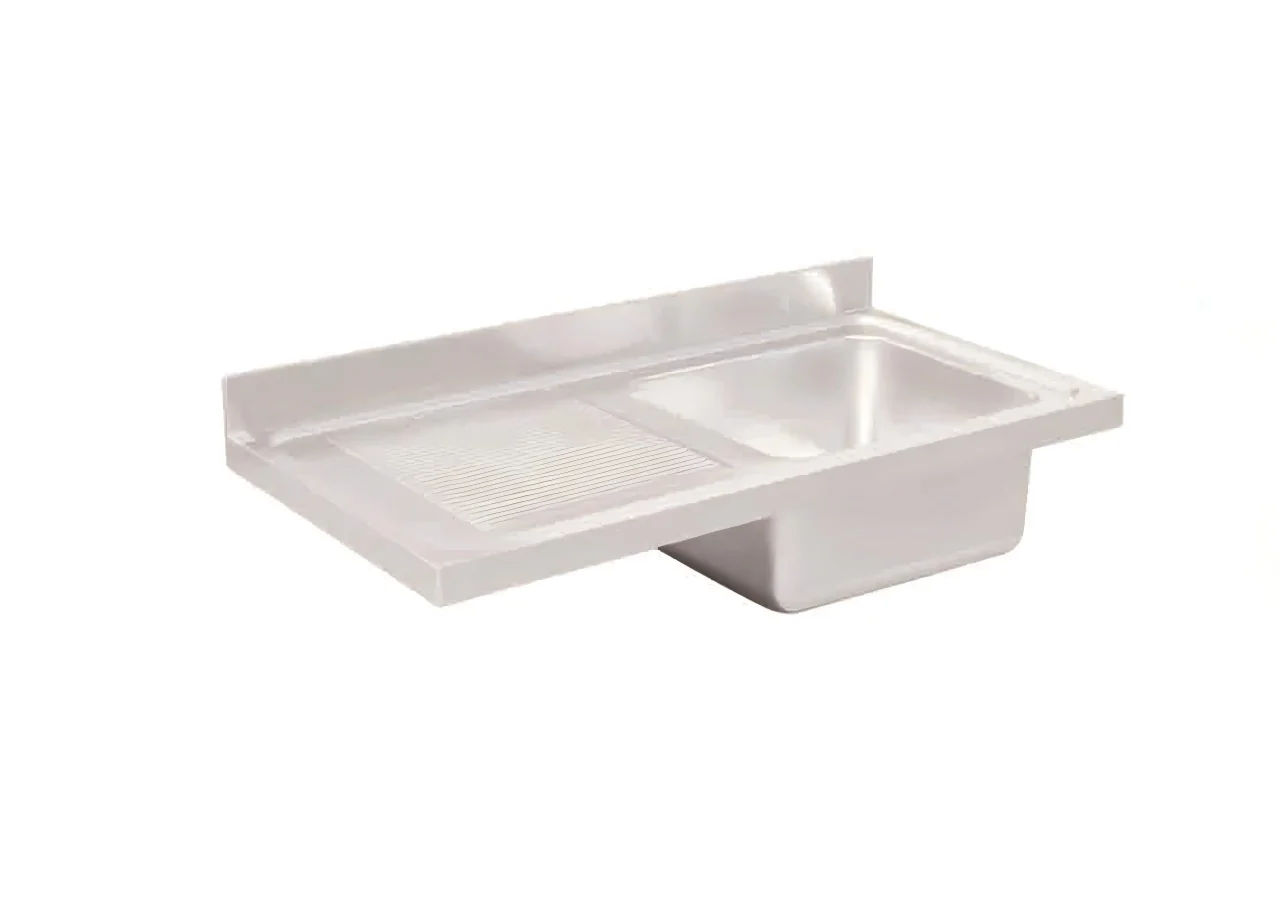

Sink top examples
Confirm the sink top specification
Share the model, overall counter dimensions, bowl size and required drainer direction.
Choose moulded or welded construction, middle or corner outlet, and the requested material grade and thickness.
Provide quantity, packing requirements and destination port or delivery address.
Plan Washing and Draining in One Work Area
Start by comparing the stainless steel sink top with drainboard with the daily job it needs to support. Write down who will use the equipment, how frequently it will be used and which products or utensils will pass through the station. For commercial dishwashing and food-preparation washing areas that need a clear place to rinse and set items down, consider where staff will stand, how they will replenish or clean the unit and how customers or adjacent work areas will move around it. A suitable choice should support the workflow without making the service area harder to manage.
For each model, confirm the overall top dimensions, bowl count and size, drainer side, bowl construction, and middle or corner outlet. Check the required material grade and thickness against the kitchen specification before ordering.
Check Space, Access and Cleaning
Measure the counter opening and delivery route, including doors, turns, lifts and nearby equipment. Leave clearance for staff to use the bowls and drainboard and to clean the sink. Verify water, waste, faucet, wall and backsplash positions against the installation drawing for the selected model.
Map the washing sequence from dirty items to rinsed or drained items, and decide whether the sink will support dishwashing, food preparation or both. Plan nearby storage and work surfaces so staff can move items without crossing the main aisle. Confirm the selected model’s water supply, waste outlet, faucet and fixing details with the installer.
Details to Confirm for the Selected Model
Use bowl dimensions, drainboard orientation, faucet or tap layout and connections specified for the exact model as the starting point for a supplier check. Ask for the specification sheet and confirm that the proposed model fits the planned task, location and service volume.
Verify the unit’s full size and the route required to move it into position.
Confirm bowl count, bowl size, drainer side, moulded or welded bowl, and middle or corner outlet.
Confirm water supply, waste outlet, faucet position, material grade and cleaning requirements for the selected sink top.
Request cleaning guidance, maintenance details and after-sales support terms.
Sink Top with Drainboard FAQs
Start with bowl count, drainboard side, overall dimensions and available counter space. Compare them with the MS1B or MS2B model table and the planned wash and rinse sequence.
Confirm the model code, overall and bowl dimensions, drainboard direction, bowl construction, outlet position, stainless steel grade and thickness. Check faucet and waste connections against the installation drawing.
Include the model code, dimensions, bowl and drainboard options, material grade, quantity, destination and site connections in the quotation request.
Confirm the final specification and installation details with the supplier before placing an order. The quotation should identify the exact model and the requirements that apply to it.
