Commercial Stainless Steel Food Storage Cabinet
Organized floor-standing storage for dry food materials, tableware, trays, containers and kitchen tools. Select hinged or sliding doors to suit the storage area and aisle clearance.
Four cabinet families for commercial kitchens
Compact cabinet option for smaller kitchens, narrow storage spaces and preparation rooms.
General-purpose enclosed storage for dry goods, containers, tableware, trays and daily supplies.
Four sliding fronts create upper and lower storage zones for classified storage.
Sliding access avoids outward door swing in narrow aisles and busy back-of-house areas.
Available in SUS201 or SUS304 stainless steel with listed thickness of 0.8–1.2 mm.
Adjustable feet help level the cabinet on different kitchen floor conditions.
Standard models and dimensions
The following model numbers and dimensions follow the Guangjie product information. Dimensions are shown in millimetres as listed.
| Series | Model | Door structure | Dimensions (mm) |
|---|---|---|---|
| DCMG | DCMG-6060 | Single hinged door | 600 × 600 × 1800 |
| DCMG | DCMG-6070 | Single hinged door | 600 × 700 × 1800 |
| SCMG | SCMG-1250 | Double hinged doors | 1200 × 500 × 1800 |
| SCMG | SCMG-1260 | Double hinged doors | 1200 × 600 × 1800 |
| SCMG | SCMG-1060 | Double hinged doors | 1000 × 600 × 1800 |
| SCMG | SCMG-1070 | Double hinged doors | 1000 × 700 × 1800 |
| SMLM | SMLM-1060 | Four sliding doors | 1000 × 600 × 1800 |
| SMLM | SMLM-1260 | Four sliding doors | 1200 × 600 × 1800 |
| SMLM | SMLM-1460 | Four sliding doors | 1400 × 600 × 1800 |
| SMLM | SMLM-1660 | Four sliding doors | 1600 × 600 × 1800 |
| SMLM | SMLM-1070 | Four sliding doors | 1000 × 700 × 1800 |
| SMLM | SMLM-1270 | Four sliding doors | 1200 × 700 × 1800 |
| SMLM | SMLM-1470 | Four sliding doors | 1400 × 700 × 1800 |
| SMLM | SMLM-1670 | Four sliding doors | 1600 × 700 × 1800 |
| SLMG | SLMG-1060 | Double sliding doors | 1000 × 600 × 1800 |
| SLMG | SLMG-1260 | Double sliding doors | 1200 × 600 × 1800 |
| SLMG | SLMG-1460 | Double sliding doors | 1400 × 600 × 1800 |
| SLMG | SLMG-1660 | Double sliding doors | 1600 × 600 × 1800 |
| SLMG | SLMG-1070 | Double sliding doors | 1000 × 700 × 1800 |
| SLMG | SLMG-1270 | Double sliding doors | 1200 × 700 × 1800 |
| SLMG | SLMG-1470 | Double sliding doors | 1400 × 700 × 1800 |
| SLMG | SLMG-1670 | Double sliding doors | 1600 × 700 × 1800 |
Material: SUS201 or SUS304 stainless steel. Listed thickness: 0.8–1.2 mm. Internal shelf arrangement, door structure, dimensions and material grade can be confirmed for the project.
Match the door structure to the kitchen layout

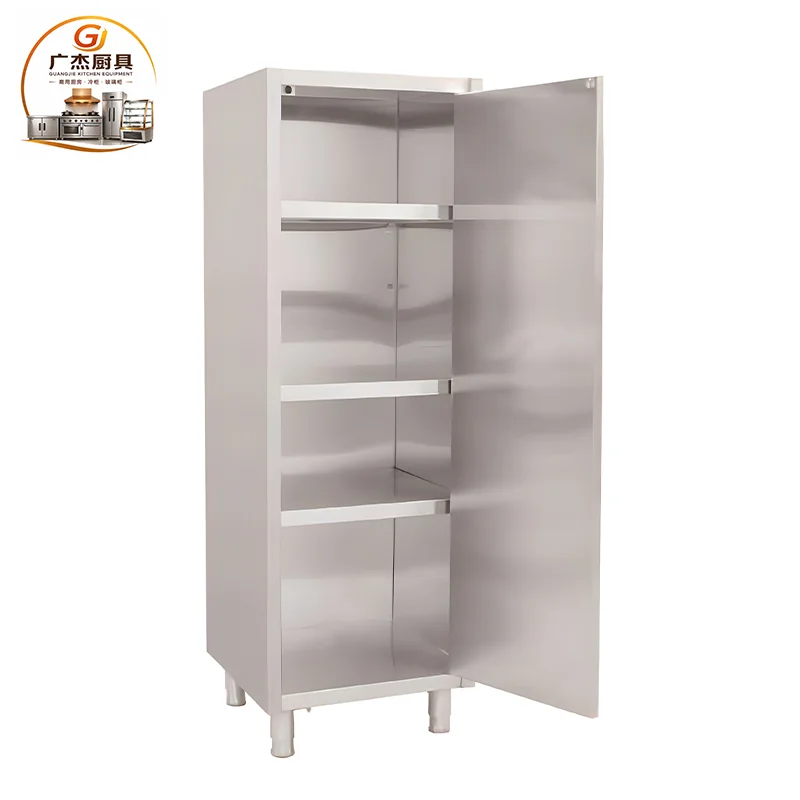

DCMG single hinged-door models cover the listed 600 mm length options.

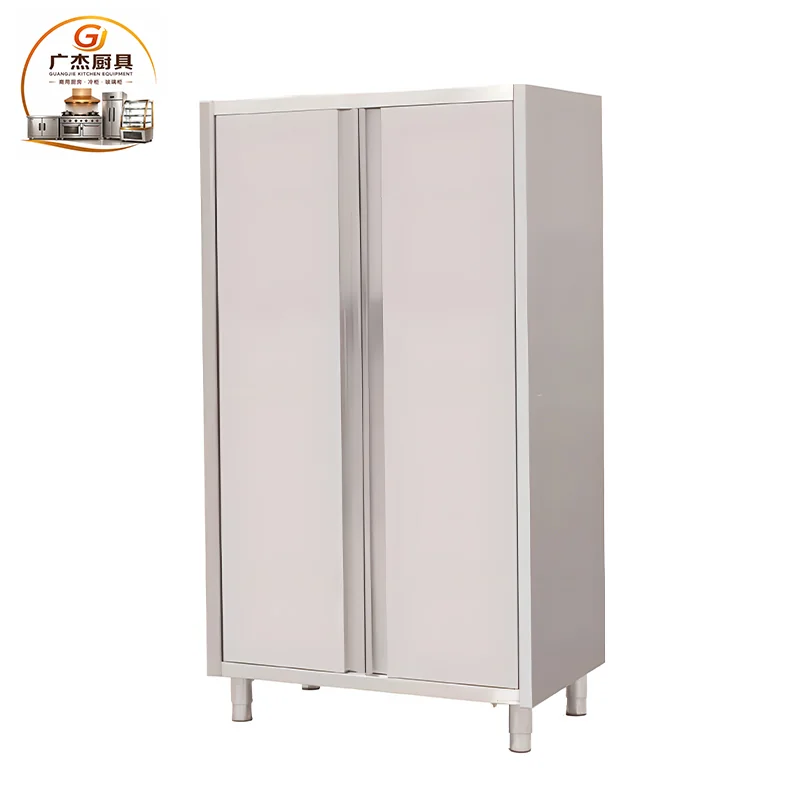

SCMG double hinged-door models include 1000 and 1200 mm lengths, with listed widths of 500, 600 or 700 mm.
SLMG sliding doors preserve front aisle space because the doors do not swing outward.

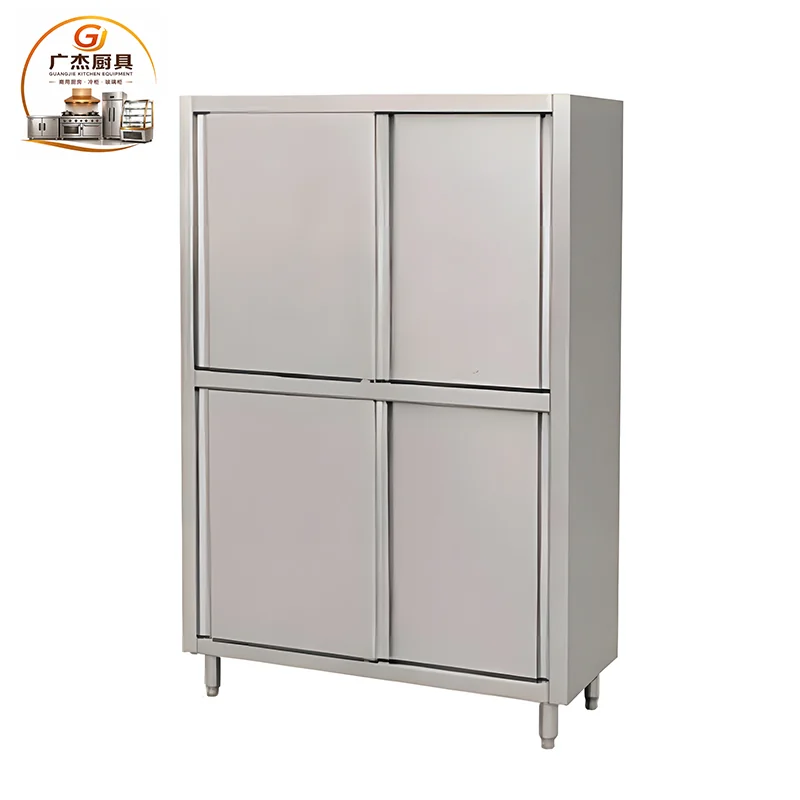

SMLM four sliding-door models divide the cabinet front into upper and lower storage zones.
Food storage cabinet gallery
Confirm these details for quotation
Select DCMG, SCMG, SMLM or SLMG.
Confirm cabinet dimensions and internal shelf arrangement.
Specify SUS201 or SUS304 and 0.8–1.2 mm thickness as required.
Provide quantity, packing requirements and destination.
Food storage cabinet questions
Which door style is suited to a narrow aisle?
Sliding-door SLMG or SMLM models avoid outward swing into the aisle.
What stainless steel grades are listed?
The listed material options are SUS201 and SUS304, with 0.8–1.2 mm thickness.
Can the interior layout be customized?
The product information allows internal shelf arrangement and dimensions to be confirmed for project requirements.
