Commercial Stainless Steel Drawer Cabinet
Freestanding drawer storage for restaurant kitchens, hotels, canteens, bakeries and central kitchens. Available in two-, three- and four-drawer layouts, with or without a backsplash.
Key details from the product information
Choose two, three or four drawers to organize utensils and kitchen supplies.
Select with or without backsplash according to wall-side or open-kitchen placement.
Available in SUS304 or SUS201 stainless steel with 1.0–1.5 mm thickness.
Catalog dimensions are 500 × 600 × 850 mm or 500 × 700 × 850 mm. Models with a backsplash list an additional 100 mm; confirm the selected layout on the approved drawing.
Confirm drawer count, backsplash style, stainless grade, thickness and final dimensions before production.
Suitable for compact storage close to worktables, sinks, cooking lines and preparation counters.
Drawer cabinet specifications
Options shown here follow the published product information. Confirm the final model and dimensions on the project drawing.
| Drawer layout | Splashback | Model and dimensions (as listed) |
|---|---|---|
| Two drawers | Without | SCCTG-5060 — 500 × 600 × 850 mm SCCTG-5070 — 500 × 700 × 850 mm |
| Two drawers | With | SCCTG-5060WS — 500 × 600 × 850 + 100 mm SCCTG-5070WS — 500 × 700 × 850 + 100 mm |
| Three drawers | Without | TCCTG-5060 — 500 × 600 × 850 mm TCCTG-5070 — 500 × 700 × 850 mm |
| Three drawers | With | TCCTG-5060WS — 500 × 600 × 850 + 100 mm TCCTG-5070WS — 500 × 700 × 850 + 100 mm |
| Four drawers | Without | FCCTG-5060 — 500 × 600 × 850 mm FCCTG-5070 — 500 × 700 × 850 mm |
| Four drawers | With | FCCTG-5060WS — 500 × 600 × 850 + 100 mm FCCTG-5070WS — 500 × 700 × 850 + 100 mm |
| Material | SUS304 or SUS201 stainless steel | |
| Thickness | 1.0–1.5 mm | |
Catalog codes and dimensions are reproduced as listed. Confirm selected model, backsplash allowance and installation fit against the approved kitchen drawing.

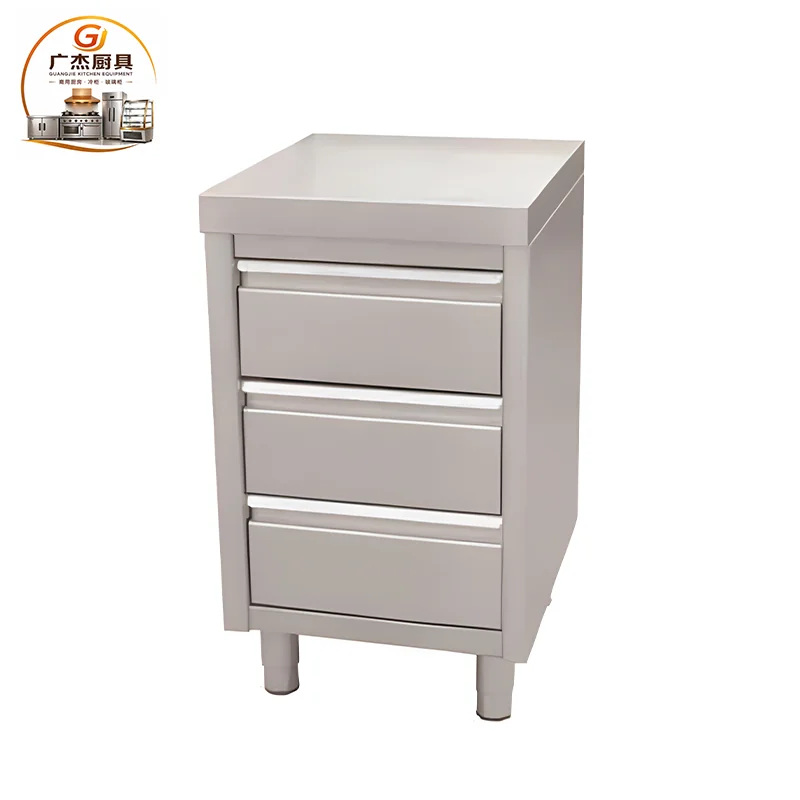

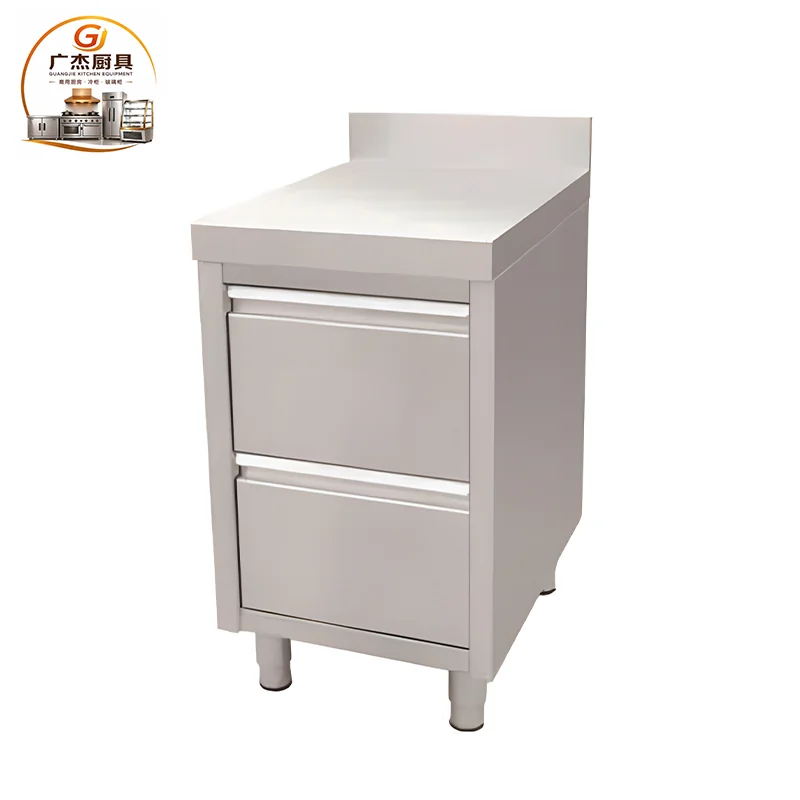

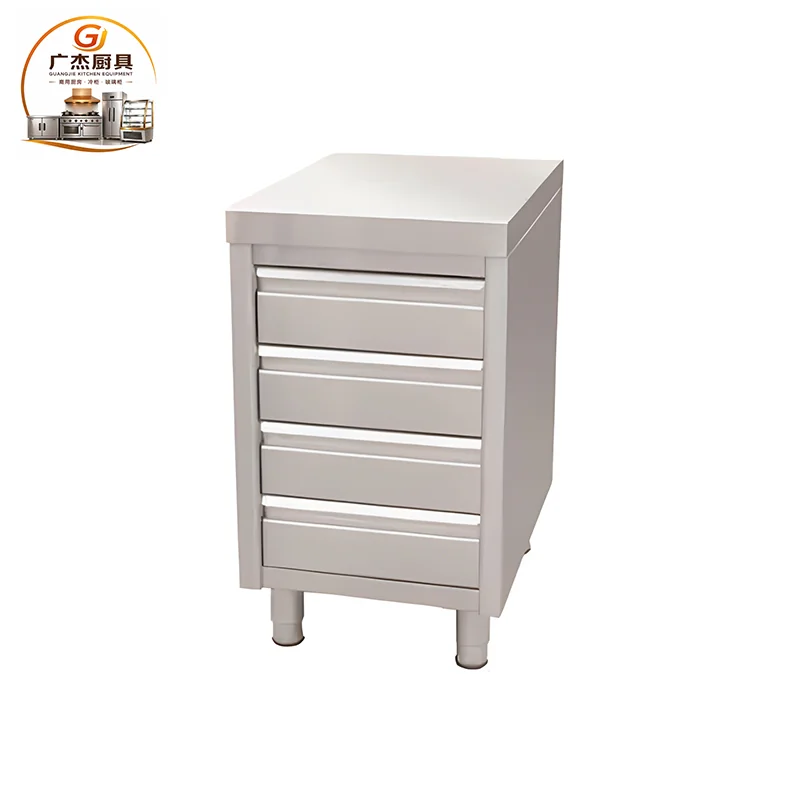

Product gallery
Confirm these details for quotation
Confirm drawer count and backsplash style.
Choose 500 × 600 × 850 mm or 500 × 700 × 850 mm; with-backsplash models list an additional 100 mm. Confirm the selected layout on the approved drawing.
Confirm stainless grade, thickness and leg configuration.
Provide quantity, packing method and destination port.
