Combined Island Freezer

Combined island freezer for supermarkets, convenience stores, fresh food stores, frozen food areas and commercial retail projects. Designed with end cabinet, middle cabinet and covered cabinet options for flexible frozen food display layouts.



Location: Home > Products > Commercial Refrigeration > Combined Island Freezer > Large Capacity Combined Island Freezer Set

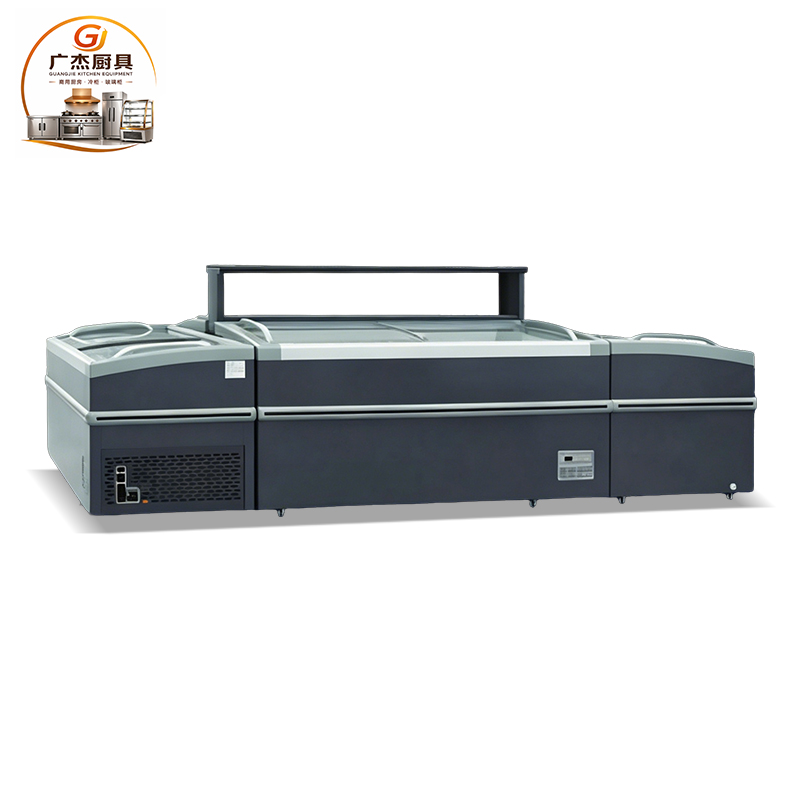

Large Capacity Combined Island Freezer Set

Large capacity combined island freezer set for supermarkets, convenience stores, frozen food stores, fresh food retail areas, and commercial frozen display projects. Designed with end cabinet, straight cabinet, covered cabinet, large capacity storage, and flexible combination options for frozen meat, seafood, ice cream, dumplings, hot pot ingredients, and packaged frozen food display.

Large Capacity Combined Island Freezer

Large Capacity Combined Island Freezer Set

Name: Large Capacity Combined Island Freezer Set
SKU: -1

The Large Capacity Combined Island Freezer Set is designed for supermarkets, convenience stores, frozen food stores, fresh food retail areas, and commercial frozen display projects. It supports different cabinet combinations, including end cabinets, straight cabinets, covered cabinets, and large-capacity display sections for frozen meat, seafood, ice cream, dumplings, hot pot ingredients, and packaged frozen food.

End and Straight Cabinet Options Large Capacity Storage Supermarket Frozen Display Flexible Store Layout

Quotation Information

Please send cabinet type, layout plan, quantity, voltage, packing method, and destination port.

Available options include end cabinet, straight cabinet, covered cabinet, and large capacity display sections.

Suitable for frozen food aisles, supermarket center display areas, frozen meat zones, seafood sections, and ice cream retail areas.

Get a Quote

Product Introduction

The Large Capacity Combined Island Freezer Set is used to build continuous frozen food display areas in retail stores. Instead of purchasing several separated freezer cabinets, buyers can choose different cabinet sections according to aisle width, frozen product category, display length, and store layout. This series is suitable for projects that need both large storage capacity and organized frozen food presentation.

Cabinet Combination Options

End Cabinet

The end cabinet is used at the side or end section of the freezer group, helping complete the display layout and improve the overall appearance.

Straight Cabinet

The straight cabinet is used as the main frozen display section. Multiple straight sections can be arranged to increase display length.

Covered Cabinet

The covered cabinet provides additional frozen product protection and can be used for stores that need a cleaner and more organized display structure.

Product Configurations

Large Capacity Configuration A

This configuration focuses on larger inner capacity and wider frozen food display sections, suitable for supermarkets and stores with higher frozen product turnover.

Combined Layout Configuration B

This configuration offers end cabinet, straight cabinet, and covered cabinet options for stores that need flexible cabinet combinations in frozen food areas.

Suitable Frozen Product Display

Frozen Meat

Suitable for frozen beef, pork, poultry products, and packaged meat products.

Seafood

Suitable for frozen fish, shrimp, seafood packs, and aquatic products.

Ice Cream

Suitable for ice cream, frozen desserts, and frozen retail snacks.

Packaged Frozen Food

Suitable for dumplings, hot pot ingredients, frozen vegetables, ready-to-cook food, and packaged frozen products.

Main Features

Large Capacity Layout

Larger internal space and flexible cabinet sections help stores display more frozen products in one continuous area.

Flexible Cabinet Combination

Buyers can choose different cabinet sections according to store aisle, display length, frozen food category, and project layout.

Suitable for Retail Projects

This series is suitable for supermarkets, convenience stores, fresh food markets, frozen food stores, and commercial retail projects.

Product Parameters

Large Capacity Configuration A

Model	Cabinet Type	Product Size	Inner Size	Capacity	Cooling Capacity
1.8m	End Cabinet	1860 × 810 × 840 mm	1700 × 650 × 600 mm	660L	600W
1.8m	Straight Cabinet	1860 × 810 × 900 mm	1700 × 650 × 650 mm	720L	600W
2.1m	Straight Cabinet	2100 × 810 × 900 mm	1940 × 650 × 650 mm	820L	700W

Combined Layout Configuration B

Model	Cabinet Type	Dimension	Temperature	Power
4000	End Cabinet	1500 × 660 × 920 mm	-28°C to -5°C	400W
6800	Straight Cabinet	1500 × 660 × 720 mm	-26°C to -5°C	600W
4000	Covered Cabinet	2160 × 600 × 920 mm	-28°C to -5°C	430W

Product specifications can be adjusted according to actual project requirements. Please confirm cabinet type, layout plan, voltage, quantity, packing method, and destination port before quotation.

Purchasing Value

Better Frozen Food Zoning

Different frozen product categories can be arranged by section, helping stores improve product visibility and customer selection.

Suitable for Larger Retail Spaces

Large capacity cabinet options are suitable for supermarkets and stores with higher frozen food storage and display needs.

Flexible Procurement

Buyers can choose cabinet sections and specifications according to project layout instead of purchasing fixed-size freezer groups only.

Application Scenarios

Supermarket Frozen Aisle Convenience Store Frozen Food Store Fresh Food Market Frozen Meat Section Seafood Retail Area Ice Cream Display Packaged Frozen Food

Request a Quote for Your Large Capacity Combined Island Freezer Set

Please send your required cabinet type, layout plan, quantity, voltage, packing requirement, and destination port. Guangjie can provide suitable large capacity combined island freezer options for supermarkets, convenience stores, frozen food stores, and commercial frozen food display projects.

Get a Quote
