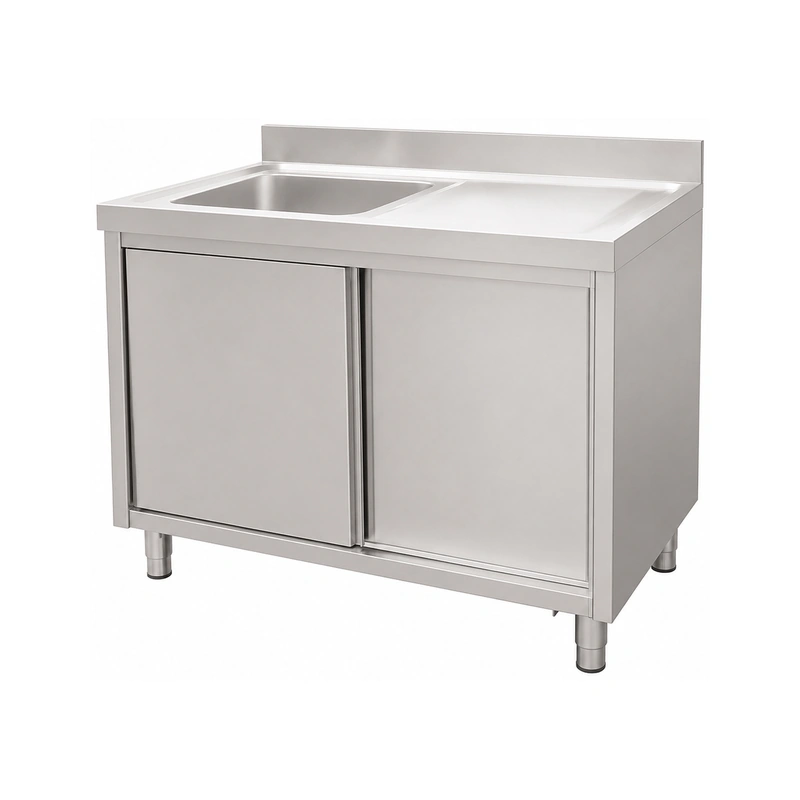

DSGS Series European Style Stainless Steel Sink Cabinet with Drainboard
An enclosed stainless steel sink cabinet for commercial washing areas, with single or double bowls, a rear splashback and drainboard layouts for left, right or both sides. Choose the cabinet arrangement to fit the washing workflow and available space.
Plan the sink cabinet around your wash area
A cabinet-style lower body provides enclosed storage and an integrated appearance beneath the sink.
Select a single bowl for a compact station or a double bowl for separate washing and rinsing tasks.
Set the draining area to match the wall position and the direction of work through the dish room.
DSGS cabinet sink configurations
Model families and size ranges below follow the product catalog. Dimensions are overall length × depth × height, in millimetres.
| Configuration | Model family | Catalog size range |
|---|---|---|
| Single sink cabinet | DSGSDXSC-7070 DSGSDXSC-6060 | 700 × 700 × 850+100 mm 600 × 600 × 850+100 mm |
| Single bowl with left drainboard | DSGSDXZLS-1070 / -1060 / -1270 / -1260 / -1470 / -1460 | 1000–1400 mm length 600 / 700 mm depth 850+100 mm height |
| Single bowl with right drainboard | DSGSDYLS-1070 / -1060 / -1270 / -1260 / -1470 / -1460 | 1000–1400 mm length 600 / 700 mm depth 850+100 mm height |
| Double bowl with left drainboard | DSGSSXZLS-1670 / -1660 / -1870 / -1860 / -2070 / -2060 | 1600–2000 mm length 600 / 700 mm depth 850+100 mm height |
| Double bowl with right drainboard | DSGSSXYLS-1670 / -1660 / -1870 / -1860 / -2070 / -2060 | 1600–2000 mm length 600 / 700 mm depth 850+100 mm height |
| Double bowl with drainboards on both sides | DSGSXZYLS-2070 / -2060 | 2000 mm length 600 / 700 mm depth 850+100 mm height |
Material grades: SUS201 or SUS304. Confirm sheet thickness, bowl depth, cabinet structure, drainboard direction and packing details for the quotation.
Gallery
Confirm the final cabinet specification
Share the DSGS model family, required overall size, bowl size and installation space.
Select SUS201 or SUS304 and confirm thickness, cabinet construction and splashback details.
Specify left, right or double drainboards, site connections, order quantity and delivery destination.
Coordinate Washing, Draining and Storage
Start by comparing the DSGS stainless steel sink cabinet with drainboard with the daily job it needs to support. Write down who will use the equipment, how frequently it will be used and which products or utensils will pass through the station. For commercial kitchens that combine dishwashing, draining and nearby storage in one work zone, consider where staff will stand, how they will replenish or clean the unit and how customers or adjacent work areas will move around it. A suitable choice should support the workflow without making the service area harder to manage.
For the selected DSGS model, confirm bowl count, overall dimensions, drainboard direction, cabinet layout and faucet position. Check bowl depth, material grade, sheet thickness, drainage and service connections against the supplier drawing before ordering.
Check Space, Access and Cleaning
Measure the sink opening and delivery route, including doors, turns, lifts and nearby equipment. Leave clearance for staff to use the bowls and drainboards, open the cabinet doors and clean the sink. Verify water, waste, faucet, wall and backsplash positions against the drawing for the selected model.
Map the washing sequence from dirty dishes to rinsed and drained items. Decide which supplies belong in the enclosed cabinet and keep the drainboards aligned with the work direction. Confirm the selected model’s water supply, waste outlet, faucet and fixing details with the installer.
Details to Confirm for the Selected Model
Use the sink bowl layout, drainboard orientation, cabinet storage, faucet position and installation connections for the exact model as the starting point for a supplier check. Ask for the specification sheet and confirm that the proposed model fits the planned task, location and service volume.
Verify the unit’s full size and the route required to move it into position.
Confirm bowl count, drainboard sides, cabinet door layout and any requested splashback or undershelf options.
Confirm water supply, waste outlet, faucet position, material grade and cleaning requirements for the selected sink cabinet.
Request cleaning guidance, maintenance details and after-sales support terms.
DSGS Sink Cabinet with Drainboard FAQs
Start with bowl count, drainboard side, cabinet format and available space. Compare these with the DSGS model table and the planned washing sequence.
Confirm the model code, overall and bowl dimensions, drainboard direction, cabinet construction, material grade, thickness, faucet position and waste outlet. Verify the final details with the supplier.
Include the model code, bowl and drainboard configuration, cabinet format, dimensions, material grade, quantity, destination and site connections in the quotation request.
Confirm the final specification and installation details with the supplier before placing an order. The quotation should identify the exact model and the requirements that apply to it.
